Nokia 5130XM Not Charging & Charger Not Supported Solution

Nokia 3710Folding Not Charging & Charger Not Supported Solution

Nokia 3610Folding Not Charging & Charger Not Supported Solution

Nokia 3600 Slide Not Charging & Charger Not Supported Solution

Nokia 3120c Not Charging & Charger Not Supported Solution

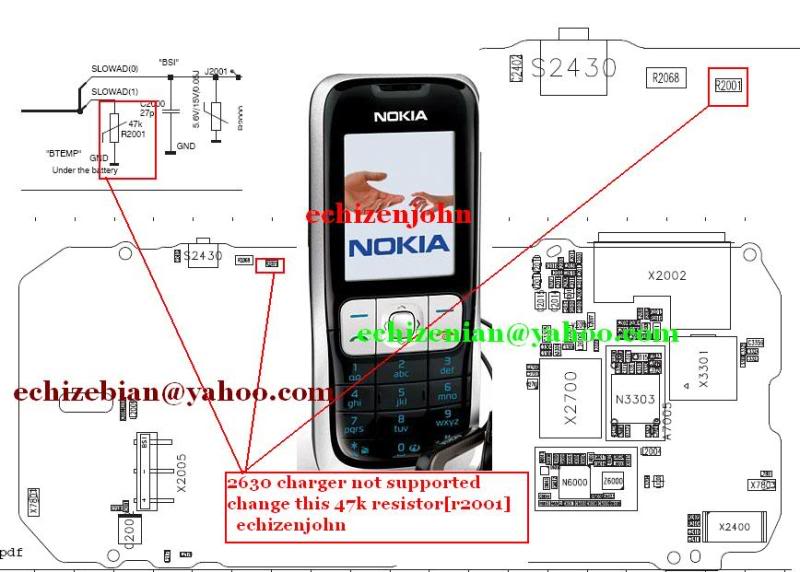

Nokia 2630 Not Charging & Charger Not Supported Solution

Complete solution's For alternatives PF IC in the generation of BB5

Complete solution's For alternatives PF IC in the generation of BB5

We will not be care to the number IC To be much easier because the numbers and names For ICs are too many and different, I will try to divide the Types by Supply Connector For PF IC and thus will avoid any damage to the phone, or Short.
Models are:

Type 1: Connectors of positive battery 3-5-8-15-17-24 .
6630-6680-6681-N70-N71-N90-N91-E60-E70

-----------------

Type 2: The Most Common : Connectors of positive battery 14-23
3120C-3250-3500C-3610F-5200-5300-5230-5320-5500-5530-5610-5700-5800X-6085-6110N-6120-6125-6131-6133-6151-6210N-6212C-6220C-6233-6263-6270-6280-6300-6301-6500S-6500C-6555-6600F-6600SI-6600S-6650F-6760-7370-7373-7390-7500-7900-8600-8800A-E50-E51-E63-E65-E66-E71-E90-N73-N76-N77-N78-N79-N80-N81-N82-N92-N93-N93I-N95-N95 8G-N96

-----------------

Type 3: Positive battery 29-30-31 Connectors and sometimes the metal PF

2700-3600S-5130-5220-5310-6202C-6208C-7210-7310-7610S-and others of the same shape.
-----------------

Type 4: To Feed From The positive battery directly, but it IC distribution of Voltages between the PF GSM *amp; PF Wcdma and nutrition Voltages To the polar 14-24

5630-5730-6260S-6700C-6
700S-6710S-6720C-E52-E72-E75-N85-N86-N97-N97min-N900-5330-X6
-------------------

Type 5: 5-6-7 Connectors positive battery is smaller in the Series of BB5

3720C-6303-7510-X3

Nokia KEY PAD IC and PF IC, LCD Compatibility Power IC and EMI Filters

Nokia KEY PAD IC and PF IC, LCD Compatibility Power IC and EMI Filters

Nokia KEY pad IC Compatibility
Here is the full list of Nokia K E Y pad IC compatibility!

EMIF-10-1K010F2

1110/1200/1600/1650/2310/3220/5140/5140i/6020/6021/6030/6060/6070/
6080/6101/6103/6230/6670/7260/7360/7610/E60/E62/E70

EMIF10-LCD02F3
2610/2626/2630/2660/2760/3110c/3500c/3555/5000/5610/5700/6110c/
6120c/6121c/6124c/6210n/6220c/6290/6300/
6301/6500s/6555/6650f/7390/7500/8600/
E51/E65/E66/N78

EMIF10-1K010F1
3200/3600/3650/5100/6200/6220/6310/6310i/6500/6510/6600/6610/6610i/
6800/6820/7200/7210/7250/7250i/8910i

EMIF10-COM01F2
2865/3120c/3230/3250/5200/5300/5500/6085/6125/6131/6131NFC/6136/
6151/6170/6230i/6233/6260/6263/6267/6270/6280/6500c/6630/6680/6681/
7270/7280/7370/7373/7380/7710/7900/8800ARTE/9300/9300i/9500/E50/
E61/E61i/N70/N72/N73/N77/N80/N81/N82/N90/N92/N93/N93i/
N95/N95-8GB

EMIF02-MIC02F2
N91

BGF109
N770

TC35892XBG
6600F

NOKIA 2011 Camera Solution Repair New Exe

DOWNLOAD

Nokia 6120c Full Hardware Solution

DOWNLOAD

New Internet Download Manager 6.5.2 Full & Crack Free Download

DOWNLOAD

Nokia RPL maker - Calculator TDS Tool Free Download

Nokia RPL maker - Calculator | TDS Tool

This small utility allows of standalone calculation of
RPL files for the DCT4 and DCT4+ generation of Nokia
mobile phones.
The files are compatible with all models
that have the combination of UPP + UEM chipset. Generated
files contain 2 sections: DATA1 and DATA2, those are needed
as follows:
DATA1 - data goes into HW PMM area of the phone(bottom 0x100 bytes
in the flash chip)
DATA2 - data goes to the OTP area of the UEM chip, used by HW logic
to lockdown security watchdog timers
Both areas are related, as DATA1 contains encrypted UEM WD unlock password
To calculate just enter UEM/ESN and press Calculate. File will be created
in the program directory. Then load to the phone with your favourite flasher.
This is a free release, with the hope will be usefull to the community.
